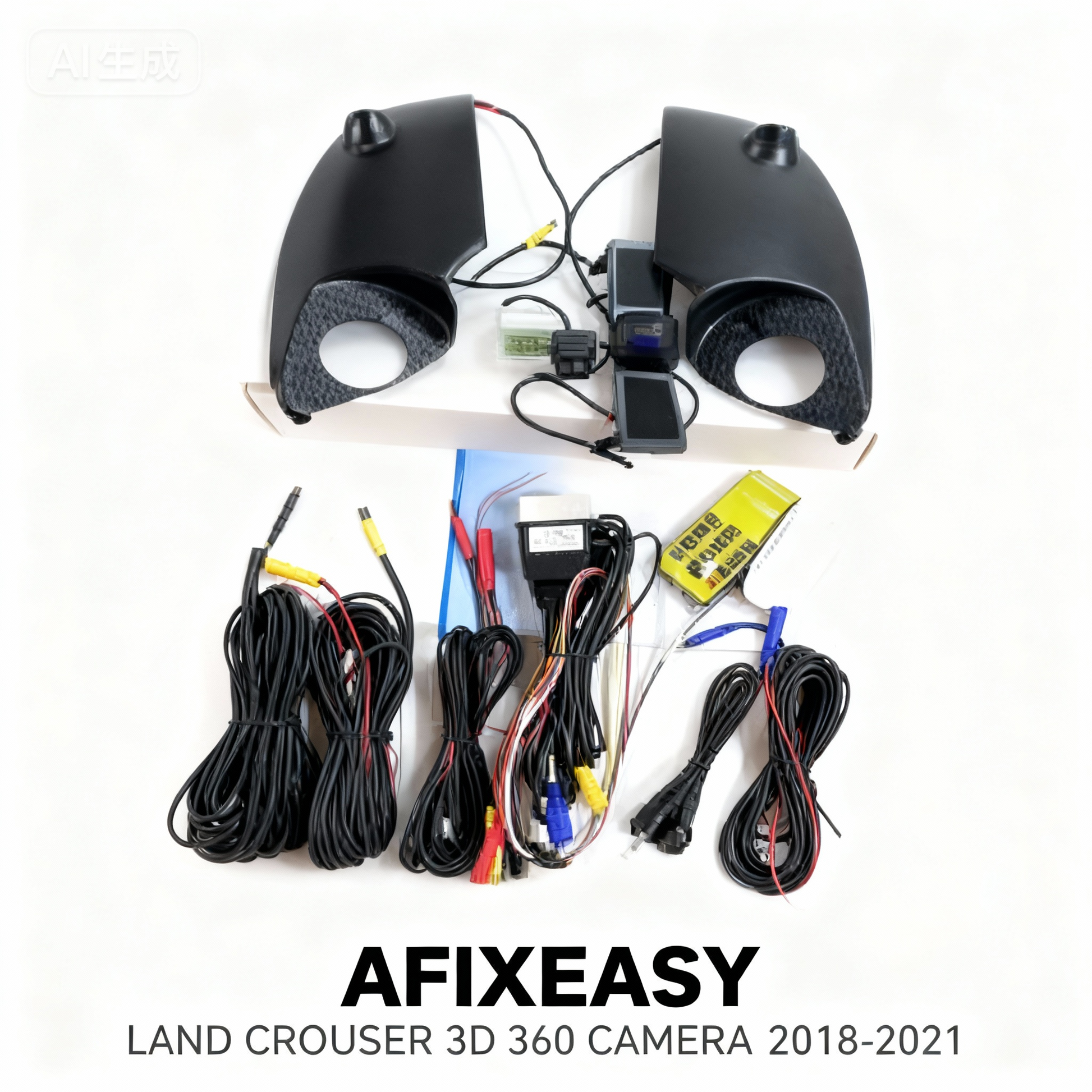

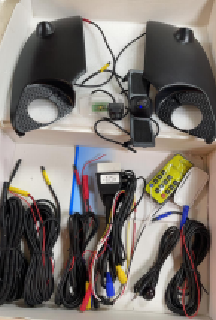

QC-06 LAND CROUSER 3D 360 CAMERA 2018-2021

Engineering machinery and equipment vehicles, agricultural machinery and equipment vehicles, municipal sanitation sweepers and other vehicles with a wide body axle length, driving position is high, there is a large driving visual safety blind spot around the car. Single camera and multi-screen rearview system can not meet the requirements of multiple monitoring areas.360 panoramic pedestrian vehicle detection and warning system is installed in the vehicle four square position of the four wide-angle starlight full-color camera, through the 360 ° AI vision algorithm synthesized vehicle around the panoramic bird's-eye view. When there are pedestrians and vehicles around the vehicle, the system on-board display screen and sound and light alarm linkage warning for drivers to provide intuitive safety tips, so that the vehicle driving more safely and efficiently.
AVM Panoramic Surround View Mainframe
Panoramic Surveillance Image System (Around View Monitor-AVM)
Through multiple (usually four) large wide-angle cameras to capture images, after a special algorithm to the captured images for
distortion correction and stitching, to form a panoramic image around the object of the system. Intelligent (automatic, manual)
fast splicing, turn signal automatic switching 3D/2D images, intelligent voice voice-controlled 12 image display modes, the
vehicle around the pedestrians, vehicle detection warning safety distance, to achieve 360 ° blind spot collision avoidance.
Product Features
Vehicle speed is lower than 25 kilometers / hour, the system automatically switches the warning screen, steering lane change
assistance warning screen, and linkage outside the car sound and light alarms
Support 4-channel AHD panoramic camera input, another 2-channel surveillance camera can be extended, support 16-channel radar
probe input, support for flameout setup alarm function, support for CAN bus communication protocols
Support real-time video, cycle video, video playback (SD card + MSATA storage)
10.1-inch high-definition touch screen monitor
►Integrated AVM Algorithm - No additional control box; Monitor integrates 360AVM algorithm for panoramic images; No blind spots
around 360°
►HD Video - 1080P high definition fish eye camera input with good real-time display, offering HD and stable images
► IPS Screen - HD IPS screen, large viewing angles
►One-minute Calibration - Automatic calibration can be finished in 1 minute, and it supports automatic plane correction, saving time and effort
►3D/2D Switching - Multiple viewing models, 3D/2D view switching freely
►Super Rear View Mirror - 3D effect supports super rearview mirror, fully covering lane, making safer when merging in the high speed
►Built-in FCW Function - Additional camera and extra installation are not required, built-in FCW(Front Collision Warning) saving time and effort
►360 System + MDVR - The 360° monitor can be connected to the existing MDVR, helping the MDVR achieve AI 360 + MDVR functionality
►Resource Integration - Radar access is supported, and the vehicle is fully protected
►Other Functions - Optional capacitive touch screen; trigger wire and GPS access are both supported
AHD panoramic camera
210° ultra-wide angle, car specification DSP, 2 million HD pixels, IP69K waterproof grade, starlight full-color, cold waterproof signal output line
